Gate Valve
FLANGE GATE VALVE
Our Cast Iron Economy Gate Valve is suitable to fit between PN16 flanges and designed for general purpose applications; hot and cold water, oil and where space is limited. A low cost, flanged, handwheel operated manual gate valve with Brass seat, Stainless Steel non rising stem and Cast Iron body and wedge.
- Available in sizes: 1 1/2" to 32"
- Cast Iron body with Brass seat.
- Temperature range: 10°C to 120°C
- Pressure rating: PN16.
Key features:
FORGED STEEL GATE VALVE
Our Forged Steel Flanged Gate Valve is suitable to fit between ANSI 150 or ANSI 300 flanges (subject to configuration) and designed for heavy duty, industrial and steam applications; steam, water, oil, vapours and gas. A flanged, handwheel operated manual gate valve with rising stem, 316 Stainless Steel seat and A105N body.
- Available in ANSI 150 or ANSI 300, sizes: 1/2" to 32".
- Forged Steel A105N body and bonnet with 316 Stainless Steel seat
- Temperature range: 0°C to 538°C.
- Pressure rating: Class 150 or Class 300.
Key features:
Key features:

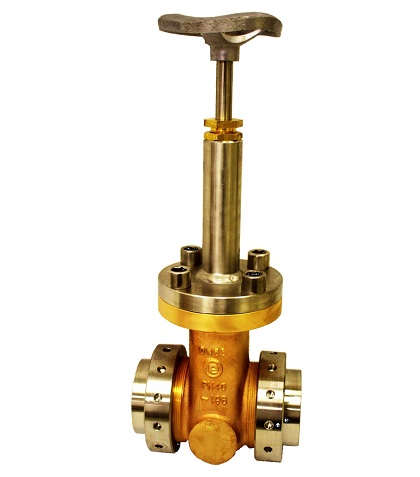

CRYOGENIC GATE VALVES
Blackhall cryogenic, oil and gas Gate valves are manufactured with wide range of end connections and material combinations.They are available in sizes from DN15 to DN200 (1/2" to 8") with operating temperatures in the range of -196'C to +65'C.
- Available in ANSI 150 or ANSI 300, sizes: 1/2" to 32".
- Material: Bronze, Stainless Steel, Monel & Aluminium
- Pressure Rating:Class150 to 1500; PN16 to PN100
- Temperature: -196'C to +65'C
Key features:

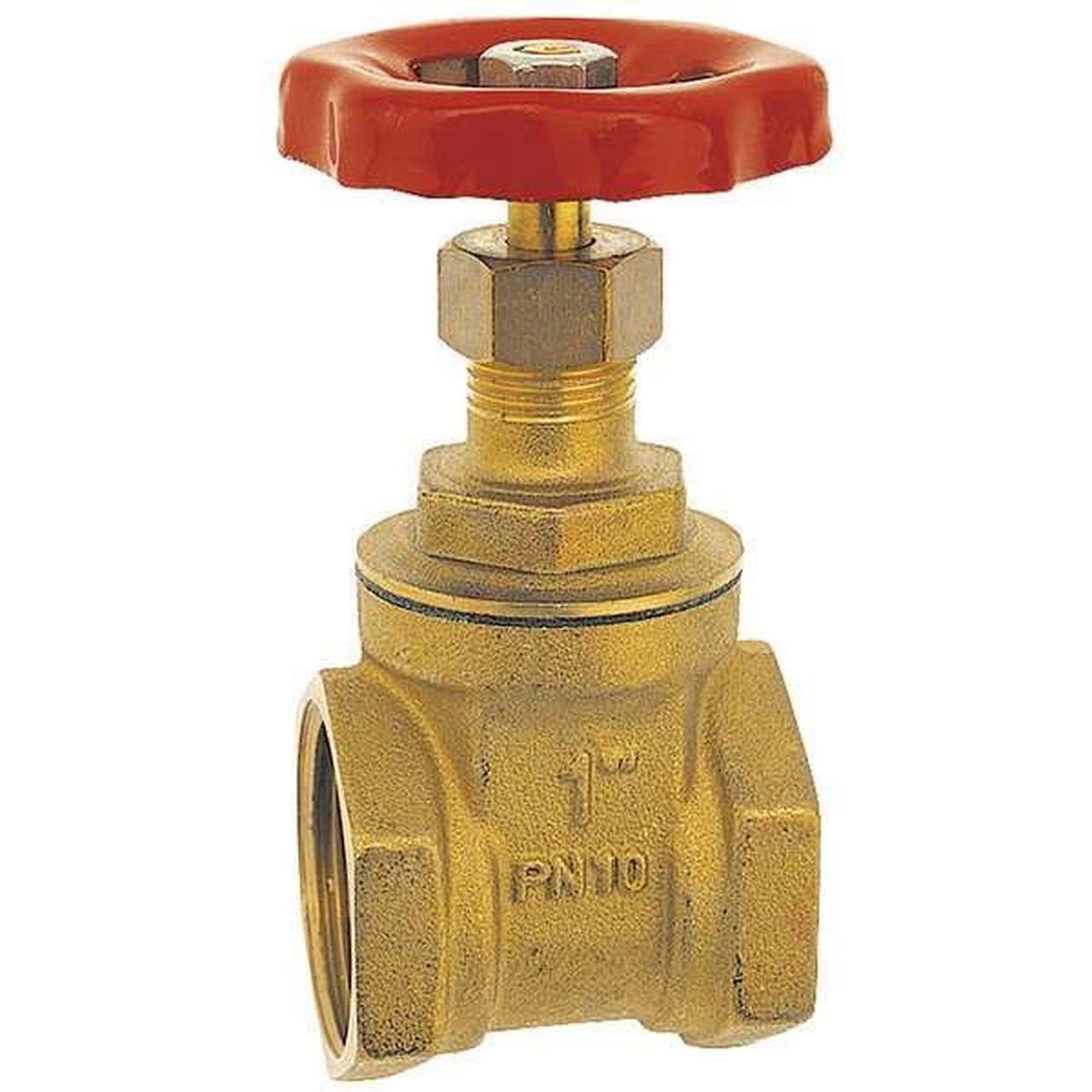

SLUICE GATE VALVES
ade of high quality brass material, this gate valve is sturdy and durable.The internal fluid path of valve body is straight through which allows fluid to flow in a straight line and the flow resistance is small. It's easier to open and close, because the movement direction of the gate is perpendicular to the flow direction, whether on or off. It is suitable for water, oil, gas, steam, etc. Widely used in mechanical equipment, chemical equipment, industrial equipment, water supply and drainage equipment, pharmaceutical equipment, petrochemical equipment, etc.
- Material: Brass
- Flow Direction: Two directions
- Pressure: 232PSI
- Port Diameter: Approx.24.5mm
- Weight: Approx.226g/8oz
Key features:

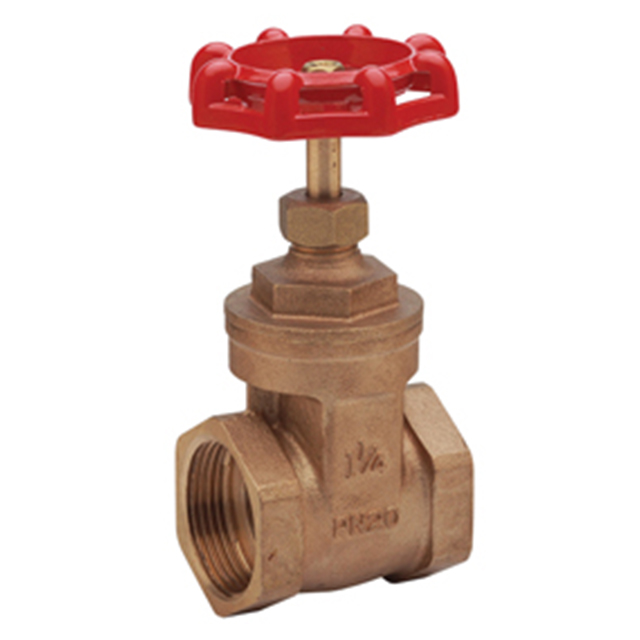

BRONZE GATE VALVES
Our Bronze Gate Valve is suitable for industrial applications and fluids including steam, water and gas. An economic full bore manual valve with non-rising stem and cast body, Handwheel Operated or Lockshield in either BSP or NPT end connections.
VOLT Bronze Gate valves are maintenance free, economical and feature a bronze body, bonnet and where applicable cast hand wheel.
- Available in sizes: 1/4" to 32".
- Bronze body with PTFE seals.
- Temperature range: -20°C to 180°C .
- Pressure rating: PN20 .
Key features:

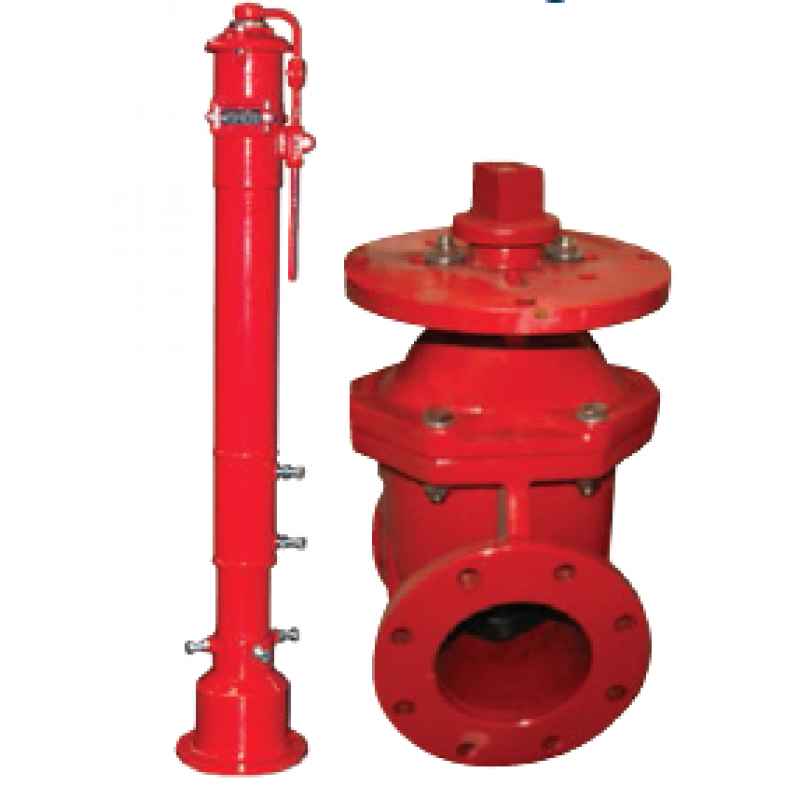

POST INDICATOR GATE VALVES
Post Indicator United Model 2010-PIV AWWA Resilient Seated Gate Valves offer State of the Art design and construction and may be used in a variety of applications for Water Works and Fire Protection service. Manufactured to exceed the requirements of AWWA C515-09 Standard, the body, bonnet, and wedge are of high strength ductile-iron.The stem and specially designed bonnet studs are of Stainless Steel; there are no exposed nuts or fasteners
- MATERIALS : GATE VALVE(CASTIRON OR CASTSTEEL) POST(CASIIRON), EXTENSION ROD(CARBONSTEEL)
- Temperature: 2°C (35°F) to 82°C (180°F
- PRESSURE : SEAT 314 PSI BODY 450 PSI I
Key features:

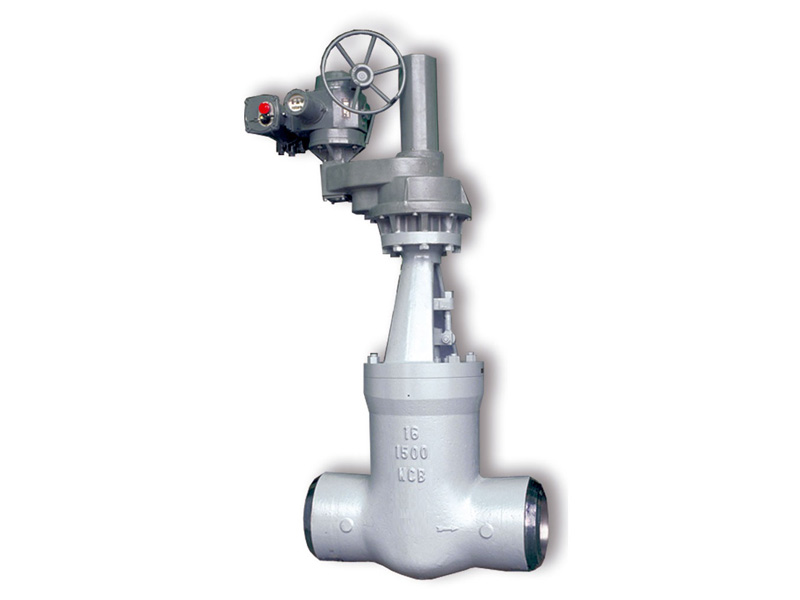

PRESSURE SEAL GATE VALVES
Pressure seal construction is adopted for Valves for high pressure service, typically in excess of above 170 bar. The unique feature about the pressure seal Bonnet is that the body-Bonnet joints seals improves as the internal pressure in the Valve increases, compared to other constructions where the increase in internal pressure tends to create leaks in the body-Bonnet joint.
- high temperature steam service
- high temperature process fluid
- pumping, compression and reinjection units
- onshore terminals
Key features:

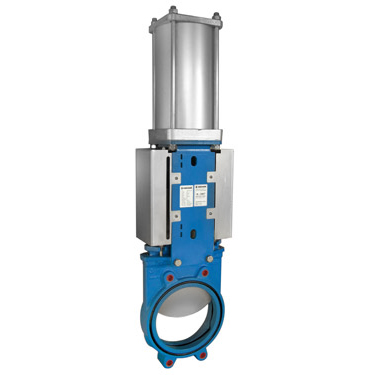

KNIFE GATE VALVES
We manufacture specific design Knife Edge Gate Valve which is highly demanded in the market and ensures minimum contact between the parts of valve and reduces abrasion. Its most unique feature is its excellent performance. There are various options available on gate, seat and wear ring. The Block edge of the Knife valve allows the tense shut off even if the solid particles settle at the bottom.
- Slim design and low weight
- Available in all dimensions
- Optionally in higher PN class
- Full bore with no reduction of the flow
- Plane bottom prevents sediment from being accumulated
Key features:

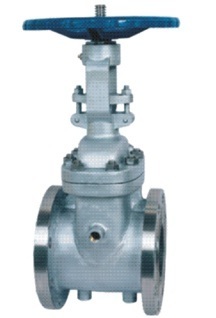

STEAM JACKETED GATE VALVES
Jacketed Gate Valve largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly.Each Full Jacketed Gate Valve body construction replace by adding minimum one size higher flanges to achieve proper tighten space of bolt and nut.
- High Quality with High Performance Jacketed Valve
- Locking Provision in Open/Close Position
- Gland Type Sealing Arrangement
- Longer Smooth Life
- Quick in Action
- No Lubrication
- Compact Design & Simplicity
Key features:
