Globe Valve
CAST STEEL GLOBE VALVES
Our Cast Steel Globe Valve Flanged PN25 / 40 is suitable for industrial and marine applications; ideally suited for isolation duty and media including steam, hot and cold water and oil. A handwheel operated, flanged globe valve with Cast Steel body, bolted bonnet and graphite gland packing.Provides a leak tight shut off with the capability of being used partially open to regulate flow.Commonly used onboard ships as a ship side valve.
- Available in sizes: 1/2" to 8".
- Temperature range: -50°C to 400°C.
- Pressure rating: PN40.
Key features:

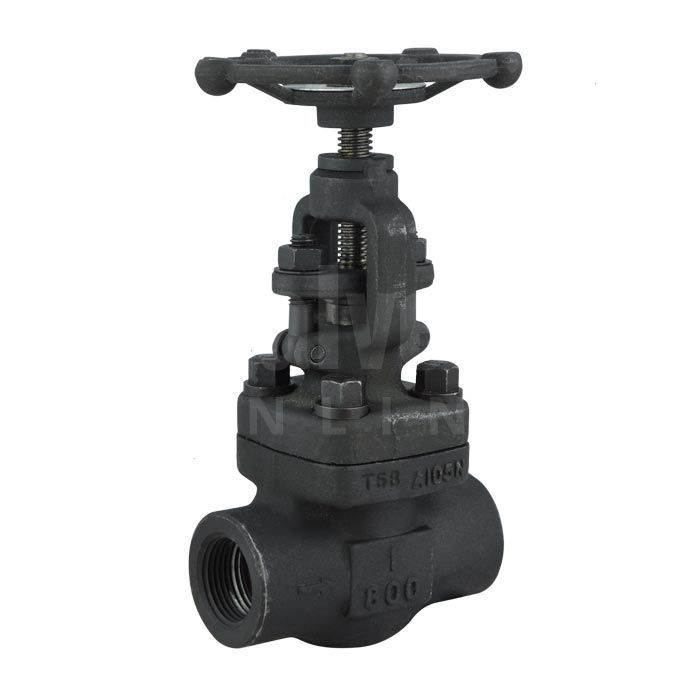

FORGED STEEL GLOBE VALVES
This heavy duty class 800 forged carbon steel Globe Valve is suitable for demanding process applications and industries where the isolation of steam, gas or liquid is required.The valve designed to API602 and tested to API598 has an outside screw and yolk with rising stem. The handwheel operates the globe valve for both isolation and for throttling applications.these valves provide a positive tight shut off in the horizontal or vertical position for process fluids in pipelines. They also offer a small amount of control and are used to throttle steam, gas or liquids. Easy to operate and the preferred choice over ball valves by engineers to isolate trapping stations.
- Handwheel operator
- Bolted Bonnet
- Sizes 1/2" to 32"
- Forged Steel A105N body
- Temperature range: -29°C to 425°C
- Pressure up tp 138 bar
Key features:
3 WAY GLOBE VALVES
They are designed to replace and perform the functions of two single ported control valves acting in opposite directions, in con- verging or diverging the flow.They can be used to control the circulation of water, oil, sea water or other liquids, in heating or cooling applications involving heat exchange bypass control.They can also be used in blending systems and on-off selector systems.
- High flow capacity and rangeability.
- Large variety of interchangeable trim sizes.
- Top entry for ease of inspection and maintenance.
- Wide selection of actuators to meet most system requirements.
Key features:

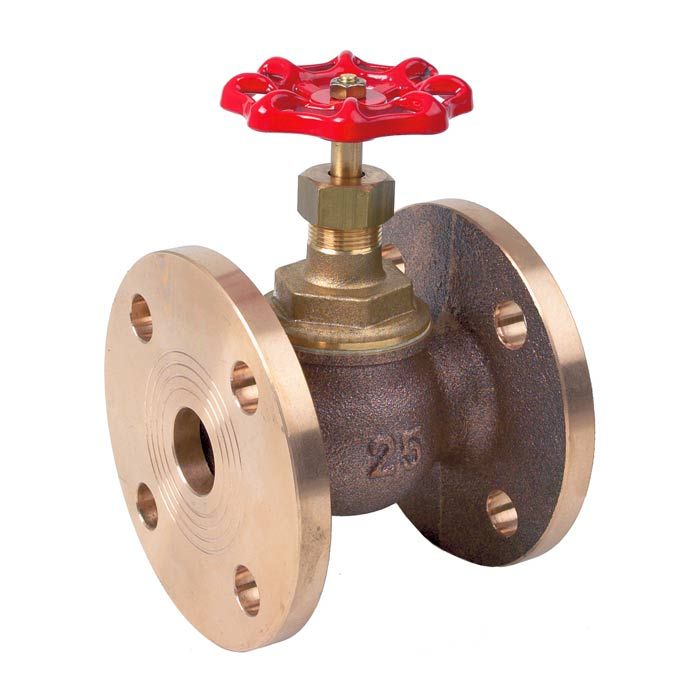

BRONZE GLOBE VALVES
Our Bronze Globe Valve Flanged PN16 is suitable for general engineering and marine applications where isolation of steam, gas or liquid is required; media including air, gas, oil, steam and water. A handwheel operated, flanged globe valve with Cast Bronze body, bonnet and Brass stem with PTFE seat.Ideally suited for regulating service.
- Available in sizes: 1/2" to 32".
- Temperature range: -10°C to 180°C.
- Pressure rating: PN16.
Key features:
CRYOGENIC GLOBE VALVES
Cryogenic Globe Valve is one of the types of the Globe Valve. It is specially invented to fulfill the need of Valves in Cryogenic conditions. Savoy Piping Inc. is a leading manufacturer, supplier, stockiest, supplier, and exporter of all type of Globe Valves. These Valves are mainly used to start, stop, and control the fluid flow in pipelines which has a moving disc against the flow of fluid to shut off liquor. We are fabricating Cryogenic Globe Valve which has an exceptional combination of maximum safety and excellent corrosion resistance.
- Size: 1/2" - 32"; DN15 - DN200
- Material: Bronze, Stainless Steel, Monel & Aluminium
- Pressure Rating:Class150 to 1500; PN16 to PN100
- End Connections: Butt Weld, Flanged, Socket Weld & Screwed
- Temperature: -196'C to +65'C
Key features:
PRESSURE SEAL GLOBE VALVES
Pressure Seal valves are designed for high pressure, high temperature applications such as Steam-Generation Stations, Industrial/Chemical Processing Plants, Thermal Power Generating Plants and other processing facilities throughout the world. Pressure Seal valves are engineered and manufactured in strict conformance to ASME, ANSI, ASTM, API and other applicable standards. The DSI Pressure Seal product line offers flex-wedge and parallel slide gate valves, straight and Y-pattern globe valves, swing, lift and tiltdisk check valves.
- Size Range: 2″ thru 32″
- Pressure Class: 600-4500
- Style: Straight Pattern, Y-Pattern and Non-Return (Stop Check) design
- Materials: A216 WCB, WC6, WC9, C5, C12, C12A, CF8M and special alloys
Key features:
STEAM JACKETED GLOBE VALVE
Steam Jacket Globe Valves are designed and manufactured with a jacket to ensure the medium’s temperature and also have all function of normal globe valves to BS 1873, Rising Stem and Non rising handwheel, solid disc in Plug, Ball or needle Type, enlarged Flanged to sure the enough space for the Jacket.
- Size Ranges: 1 1/2” through 32”
- Pressure Ratings: ANSI #150 to 2500
- Standards compliance: BS1873, ASME B16.34 or equivalents
- Materials: Cast Carbon Steel, Cast Stainless Steel, Cast Duplex or Other Specials
Key features:
